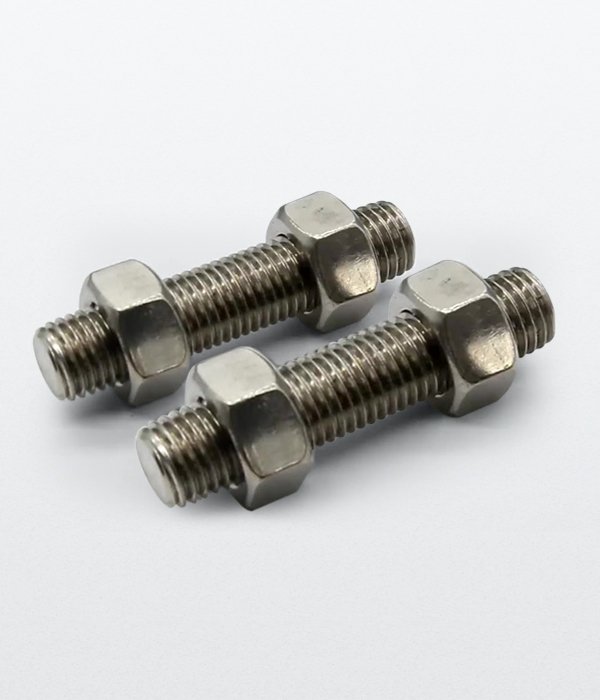

This specification for ASTM F593 covers the requirements for stainless steel bolts, hex cap screws, and studs 0.25 to 1.50 in., inclusive, in nominal diameter in a number of alloys in common use and intended for service applications requiring general corrosion resistance. Atlanta Rod can work with a number of other less common grades of ASTM F593, but they are not detailed in the description below.
| Group | Alloy Grades | Condition | Family Type |
|---|---|---|---|
| 1 | 304,305,384,304L,XM1,18-9LW, 302HQD | Cold Worked ( CW ) | Austenitic |
| 2 | 316, 316 L | Cold Worked ( CW ) | Austenitic |
| 3 | 321, 347 | Cold Worked ( CW ) | Austenitic |
| 4 | 430E | Cold Worked ( CW ) | Ferritic |
| 5 | 410F | Hardened & Tempered ( H ) | Martensitic |
| 6 | 431 | Hardened & Tempered ( H ) | Martensitic |
| 7 | 630 | Age Hardened ( AH ) | Precipitation Hardening |
- *Unless otherwise specified on the inquiry and order, the choice of an alloy from within a group shall be at the discretion of the fastener manufacturer
- *Sizes 0.75 in. and larger may be hot worked and solution annealed.
- *When approved by the purchaser, Alloys 303, 303Se, or XM1 may be furnished.
- *When approved by the purchaser, Alloy 430F may be furnished.
- *When approved by the purchaser, Alloys 416 or 416Se may be furnished.
