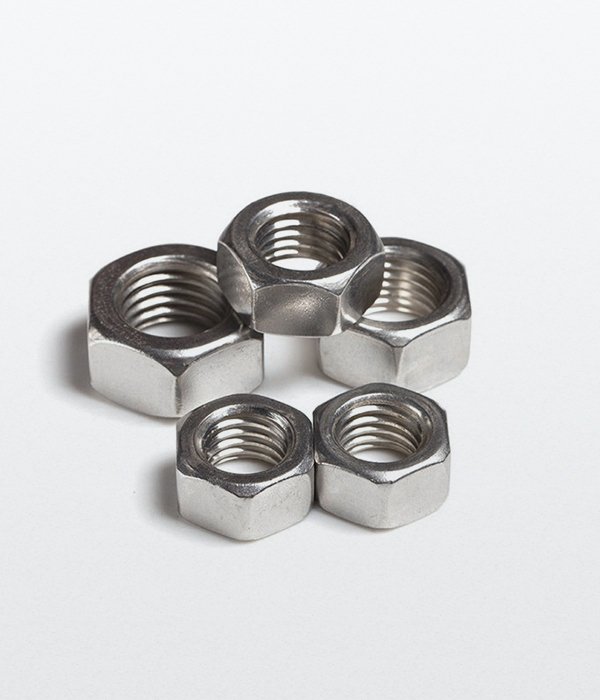

Thumb

ASTM F467 – Standard Specification for Nonferrous Nuts for General Use

Merica Industries has been manufacturing anchor bolts, embeds, headed bolts and construction fasteners to customer specifications With 120,000 square feet of manufacturing space we have the ability to supply large scale heavy construction projects as well as small same day specials.

The ASTM F467 specification covers the chemical, mechanical, dimensional, and workmanship and finish requirements, and the corresponding test methods for commercial wrought nonferrous nuts in a variety of alloys in common use that are intended for general service applications. When tested, the nuts shall meet required values for hardness, proof stress, and tensile stress areas.

Typical Applications:

  • Pulp and Paper Industry
  • Salt Water Equipment
  • Acid Processing Plants
  • Oil Refinery
  • Gas Scrubbing



  • CHEMICAL REQUIREMENTS
  • MECHANICAL REQUIREMENTS



Copper and Copper Base Alloys

Alloy General Name Aluminum Copper, min Iron, max Manganese, max.
260 Brass 68.5 -71.5 0.05
464 Naval Brass 59.0 – 62.0 0.10
630 Aluminum Bronze 9.0 – 11.0 78.00 2.0 -4.0 1.5
655 Silicon Bronze 94.80 0.80 1.5
Nickel, max. Phosphorus Silicon Zinc, max Lead, max
balance 0.07
balance 0.10
4.0 – 5.5 0.25 max
0.60 2.8 – 3.8 1.50 0.2 – 0.8

Nickel and Nickel base Alloys

Alloy General Name Aluminum Carbon Chromium Copper
400 Ni-Cu Class A 0.30 balance
500 Ni-Cu-Al 2.30 – 3.15 0.25 balance
625 Ni-Cr-Mo-Cb 0.40 0.10 0.10
Iron, max Manganese, max Nickel Phosphorus Titanium
2.50 2.00 63.0 – 70.0 0.02
2.00 1.50 63.0 – 70.0 0.35 – 0.85
5.00 0.50 58.0 min



Alloy Marking Hardness, min Proof Stress, min KSI Finished Proof Stress, min KSI Heavy
Cu 260 F467AB 55 HRF 60 65
Cu 260 F467D 55 HRB 50 54
Cu 630 F467H 85 HRB 100 108
Ni 655 F467L 60 HRB 50 54
Ni 400 F467U 75 HRB 80 86
Ni 500 F467W 24 HRC 130 140
Ni 625 F467AC 35 HRC 60 65
